01.Advanced 7-Chamber Shield : Offers maximum thermal efficiency with up to 7 internal air chambers, drastically inhibiting heat conduction.
02.Extreme Weather Resistance : Designed to withstand heavy wind, snow, and rain with superior water tightness and air tightness.
03.Structural Galvanized Core : Full galvanized steel core ensures dimensional stability and anti-sagging performance over decades.
UPVC Doors
With its good heat-insulation function, it is popular in those cold areas and high-efficiency buildings.
- Technical Specifications
| Profile Structure | 3-7 chambers, top quality profile; 60/70 series |
|---|---|
| Wall Thickness | 2.0mm to 2.5mm available |
| Reinforcement | 1.0mm – 2.0mm galvanized steel reinformcement |
| Glazing Options | Double (5+12A+5) / Triple / Low-E / Laminated |
| Sealing Tech | PVC & EPDM dual-grade rubber seal |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.

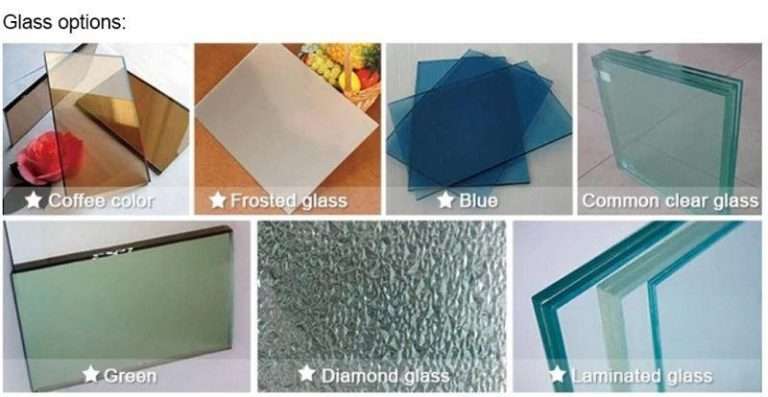

- Glass & Spacer Options
01.Advanced 7-Chamber Shield : Offers maximum thermal efficiency with up to 7 internal air chambers, drastically inhibiting heat conduction.
02.Extreme Weather Resistance : Designed to withstand heavy wind, snow, and rain with superior water tightness and air tightness.
03.Structural Galvanized Core : Full galvanized steel core ensures dimensional stability and anti-sagging performance over decades.
02.Extreme Weather Resistance : Designed to withstand heavy wind, snow, and rain with superior water tightness and air tightness.
03.Structural Galvanized Core : Full galvanized steel core ensures dimensional stability and anti-sagging performance over decades.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
