01.Motorized / Magnetic Blinds : Blinds are sealed inside the double glazing, offering privacy control without the hassle of cleaning manually.
02.Heavy-Duty 190 Frame : The 190 series provides extreme structural stability for oversized glass doors with ultra-smooth sliding experience.
03.Triple Track Versatility : Triple track configuration allows for 2/3 overall opening area, maximizing the connection between indoor and outdoor.
Trend Aluminium Doors
inner blinds design, triple tracks, sliding door, 190 series
- Technical Specifications
| Item Series | 190 series trend aluminium doors |
|---|---|
| frame material | Aluminum alloy 6063-T5 |
| Glazing Details | 5+12A+5 / 6+12A+6 double glazed |
| Track System | Triple tracks with smooth rollers |
| Special Feature | Integrated magnetic inner blinds |
| Sealing System | Silicon sealant & EPDM weather stripper |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.

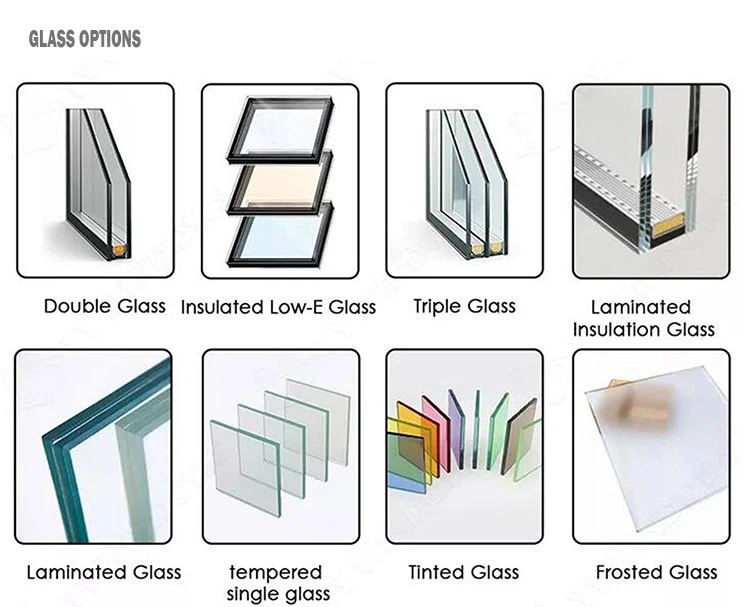

- Glass & Spacer Options
01.Motorized / Magnetic Blinds : Blinds are sealed inside the double glazing, offering privacy control without the hassle of cleaning manually.
02.Heavy-Duty 190 Frame : The 190 series provides extreme structural stability for oversized glass doors with ultra-smooth sliding experience.
03.Triple Track Versatility : Triple track configuration allows for 2/3 overall opening area, maximizing the connection between indoor and outdoor.
02.Heavy-Duty 190 Frame : The 190 series provides extreme structural stability for oversized glass doors with ultra-smooth sliding experience.
03.Triple Track Versatility : Triple track configuration allows for 2/3 overall opening area, maximizing the connection between indoor and outdoor.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
