01.Integrated Transom Design : The upper transom window allows extra natural light into the room even when the main door is closed.
02.Heavy-Duty Structural Core : Supports high-frequency usage in commercial shops, hotels, and offices with zero leaf sag.
03.Multi-Surface Compatibility : Available in sleek grey or natural wood grain to compliment any modern commercial or residential facade.
Transom Swing System Door
Heavy-duty 70 series swing door with a classic transom window design, offering enhanced ventilation and timeless commercial/residential appeal.
- Technical Specifications
| Profile Depth | 70mm high-rank 6063-T5 alloy |
|---|---|
| Wall Thickness | 1.4mm to 2.0mm customized builds |
| Design Feature | Integrated transom window for superior ventilation |
| Surface Finish | Powder coated grey / Heat transfer printing |
| Durability | Expected lifetime 30+ years (ISO/CE certified) |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.

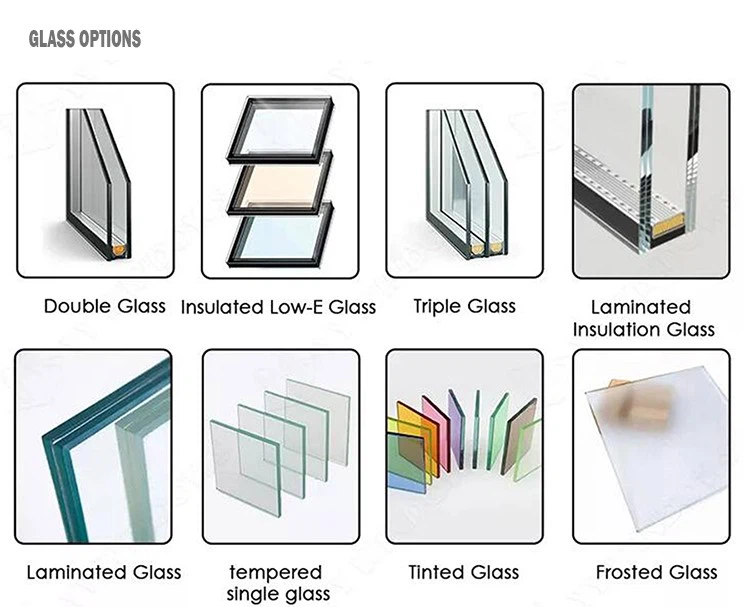

- Glass & Spacer Options
01.Integrated Transom Design : The upper transom window allows extra natural light into the room even when the main door is closed.
02.Heavy-Duty Structural Core : Supports high-frequency usage in commercial shops, hotels, and offices with zero leaf sag.
03.Multi-Surface Compatibility : Available in sleek grey or natural wood grain to compliment any modern commercial or residential facade.
02.Heavy-Duty Structural Core : Supports high-frequency usage in commercial shops, hotels, and offices with zero leaf sag.
03.Multi-Surface Compatibility : Available in sleek grey or natural wood grain to compliment any modern commercial or residential facade.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
