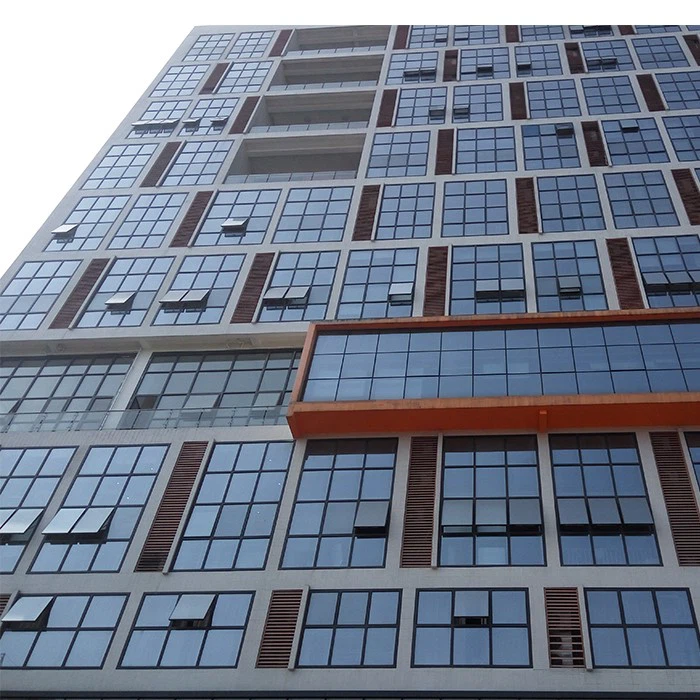

01.Classic Visible Frame Aesthetics : The clear frame outlines create a rhythmic and modern geometric look for large building facades.

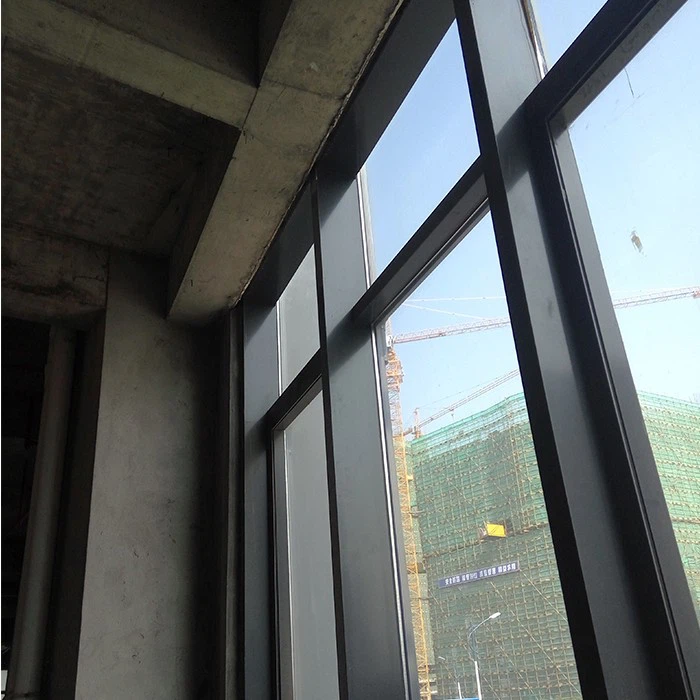

02.Superior Structural Stability : Glass embedded deep into the heavy-duty aluminum frame for maximum seismic and wind performance.
03.Versatile Series Options : Choose from 100 to 150 series to match building heights and specific wind-load requirements.
Structural Curtain Wall
High-performance structural curtain wall system with glass embedded into 100-150 series aluminum frames, creating a stable and aesthetic four-sided support structure.
- Technical Specifications
| Frame System | 6063T5 aluminium; 100/ 120/ 140/ 150 series |
|---|---|
| Structure Style | Visible frame type; Four-sided frame member |
| Glass Configuration | Single: 4mm-12mm; customizable layered glass available |
| Finish & Color | anodizing, black, Dark grey, silver, white; Powder coating |
| Hardware Component | High-grade China/Germany brand systems |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.
- Glass & Spacer Options
01.Classic Visible Frame Aesthetics : The clear frame outlines create a rhythmic and modern geometric look for large building facades.
02.Superior Structural Stability : Glass embedded deep into the heavy-duty aluminum frame for maximum seismic and wind performance.
03.Versatile Series Options : Choose from 100 to 150 series to match building heights and specific wind-load requirements.
02.Superior Structural Stability : Glass embedded deep into the heavy-duty aluminum frame for maximum seismic and wind performance.
03.Versatile Series Options : Choose from 100 to 150 series to match building heights and specific wind-load requirements.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
