01.Maximized Vision & Light : Sightlines often 19-20mm with up to 90% glass area, flooding interiors with light and blurring space boundaries.
02.High Performance Soundproof : High-performance glazing reduces external noise by up to 41dB, perfect for urban environments.
03.Smart Space Optimization : Horizontal sliding operation suits tight spaces (balconies, corridors), avoiding swing clearance issues.
04.Sustainability & Durability : 100% recyclable aluminium with thermal breaks for low carbon goals and Energy efficiency.

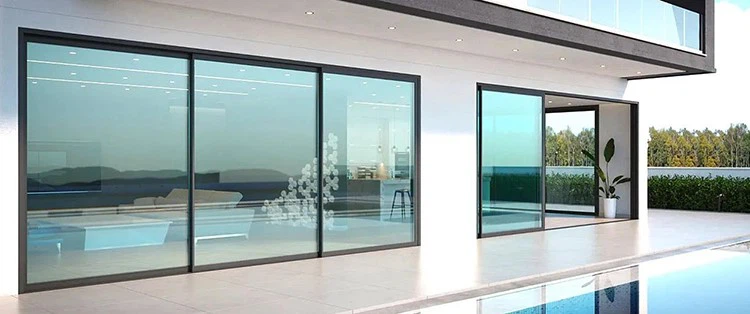

Slimline Aluminium Sliding Doors
Slimline aluminium sliding doors are modern doors with ultra-thin frames and large glass panels, providing unobstructed views and ~90% glass area. They offer high performance in energy efficiency, sound insulation (up to 41dB), and weather resistance.
- Technical Specifications
| Performance Specs | Sound insulation up to 41dB; Wind pressure resistance up to 2160 Pa; U-values as low as 1.3 W/m²K |
|---|---|
| Profile & Size | 120-157 series; 1.6-3.0mm thickness 6063-T5; Max sash: 2.5m (W) x 3m (H) |
| Glass Option | 5-19mm Tempered; 5+9/12/25+5mm Insulated; Laminated glass available |
| Hardware & Mesh | Germany/China hardware; Stainless steel/Fiberglass/Retractable mesh |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.
- Glass & Spacer Options
01.Maximized Vision & Light : Sightlines often 19-20mm with up to 90% glass area, flooding interiors with light and blurring space boundaries.
02.High Performance Soundproof : High-performance glazing reduces external noise by up to 41dB, perfect for urban environments.
03.Smart Space Optimization : Horizontal sliding operation suits tight spaces (balconies, corridors), avoiding swing clearance issues.
04.Sustainability & Durability : 100% recyclable aluminium with thermal breaks for low carbon goals and Energy efficiency.
02.High Performance Soundproof : High-performance glazing reduces external noise by up to 41dB, perfect for urban environments.
03.Smart Space Optimization : Horizontal sliding operation suits tight spaces (balconies, corridors), avoiding swing clearance issues.
04.Sustainability & Durability : 100% recyclable aluminium with thermal breaks for low carbon goals and Energy efficiency.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
