01.Equilibrium Physics : Vertically aligned pivot points distribute mass center, preventing long-term panel deformation.
02.Minimalist Statics : Concealed pivots and extreme load capacity allow for monolithic glass statements without visible anchors.

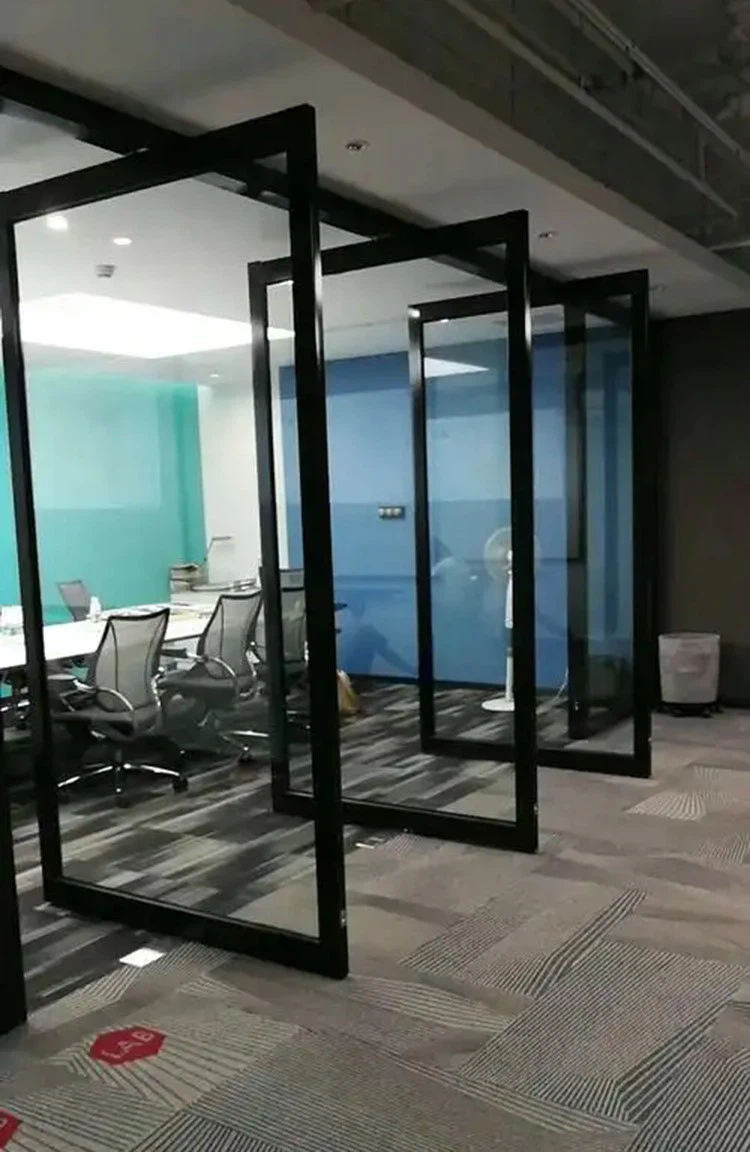

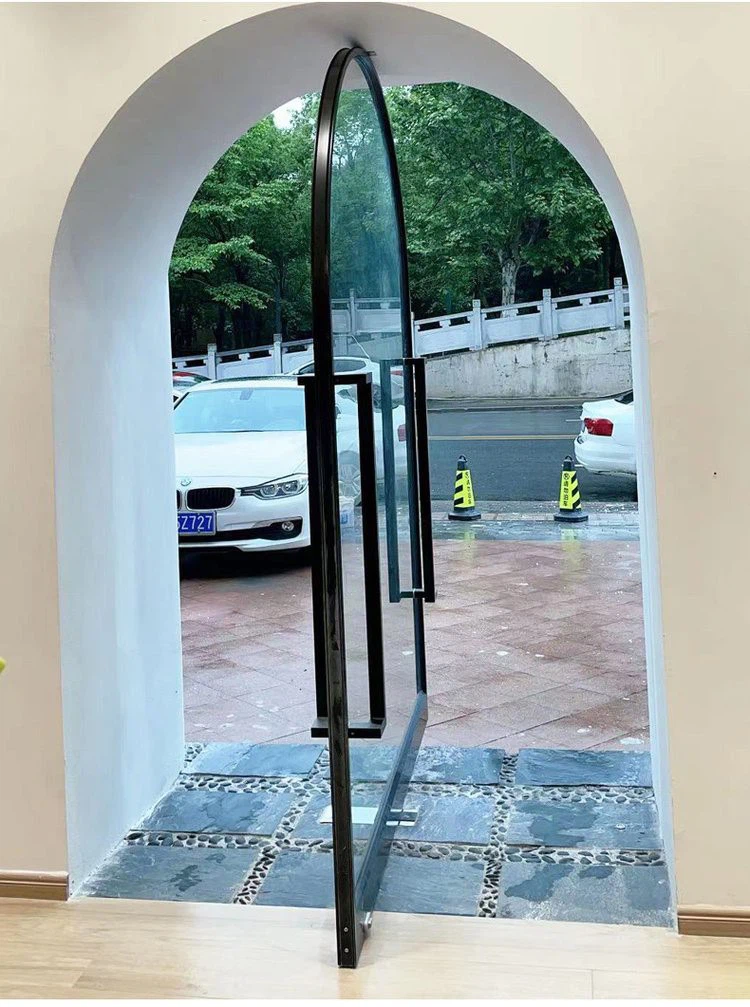

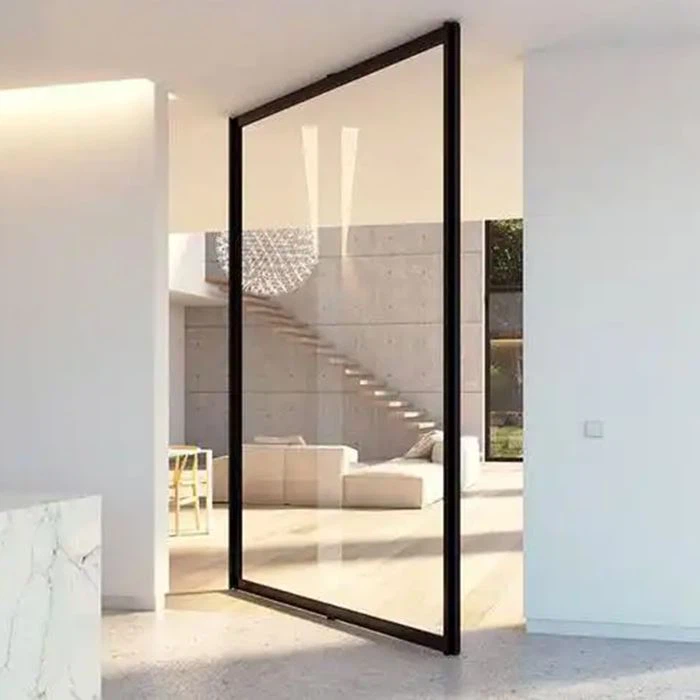

Luxury High-Load Aluminum Pivot Doors
High-end 2.0mm aluminum doors utilizing precise upper and lower pivots for 180° rotation and up to 500kg load-bearing capacity.
- Technical Specifications
| Series Range | 46 / 65 / 75 / 100 heavy series; 2.0-3.0mm profiles |
|---|---|
| Load Bearing | Up to 500kg per leaf; Optimized for 3m+ heights |
| Opening Angel | 90° / 180° / 360° Rotation options |
| Thermal Break | Optional PA66 thermal bridge technology |
| Certifications | AAMA 101, AS2047, BS, CE, NF, SONCAP |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.
- Glass & Spacer Options
01.Equilibrium Physics : Vertically aligned pivot points distribute mass center, preventing long-term panel deformation.
02.Minimalist Statics : Concealed pivots and extreme load capacity allow for monolithic glass statements without visible anchors.
02.Minimalist Statics : Concealed pivots and extreme load capacity allow for monolithic glass statements without visible anchors.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
