01.High Duty Structure : 100 series high duty profiles for large architectural spans.
02.Sound Proofing : Excellent sound proof and anti-aging performance with EPDM sealant.

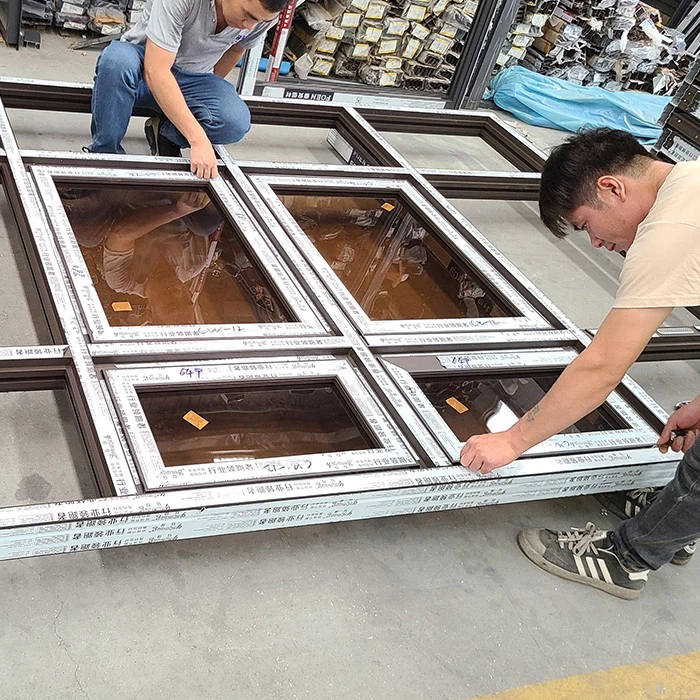

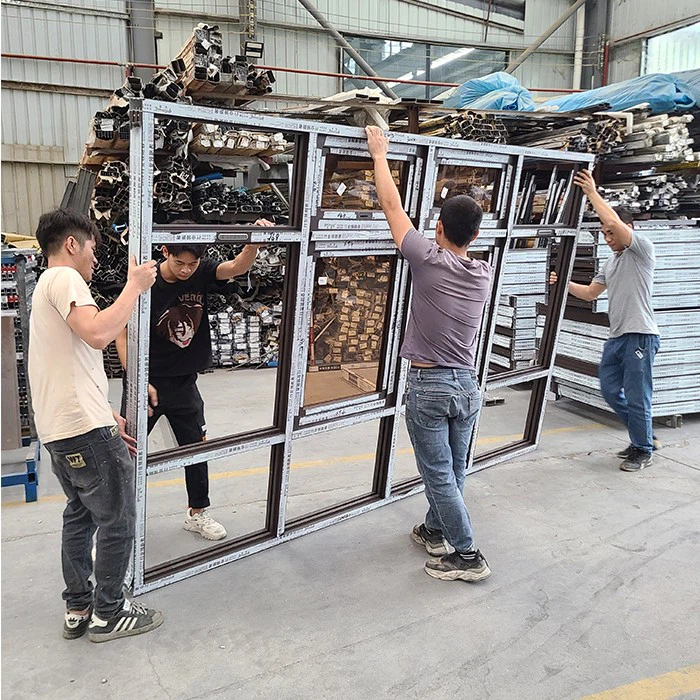

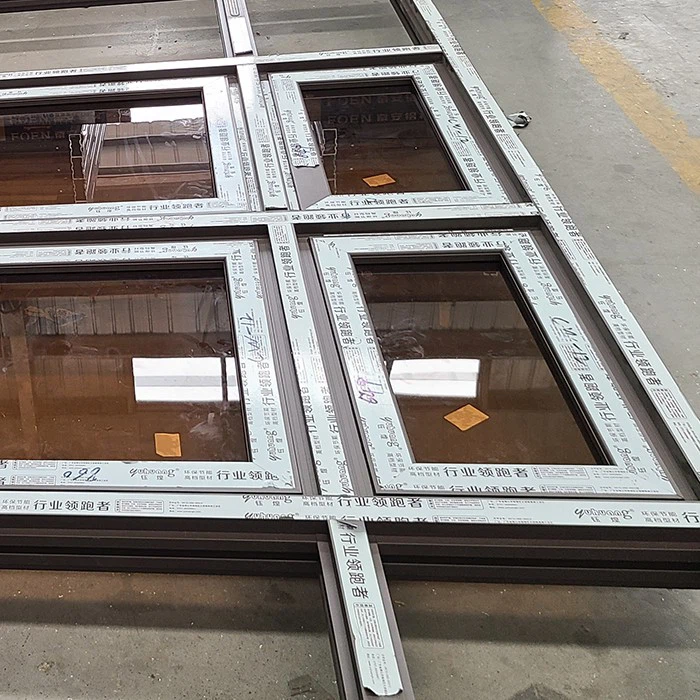

Large Windows
large size window,french sash, brown color surface treatment, 100 series, high duty
- Technical Specifications
| Product name | 100 series french large windows |
|---|---|
| Material | Non-thermal aluminum alloy |
| Profile Depth | 100mm; 2.0mm thickness |
| Surface treatment | Powder coating brown color |
| Hardware | Kinlong brand |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.
- Glass & Spacer Options
01.High Duty Structure : 100 series high duty profiles for large architectural spans.
02.Sound Proofing : Excellent sound proof and anti-aging performance with EPDM sealant.
02.Sound Proofing : Excellent sound proof and anti-aging performance with EPDM sealant.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
