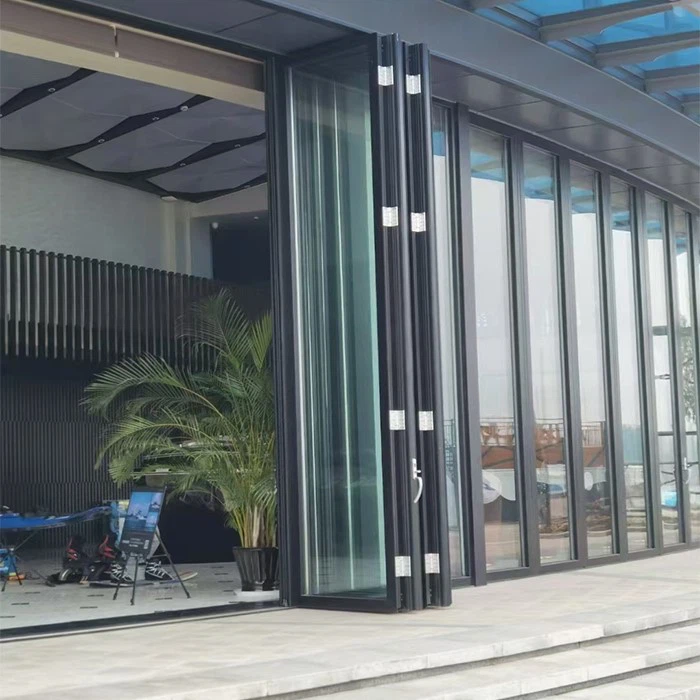

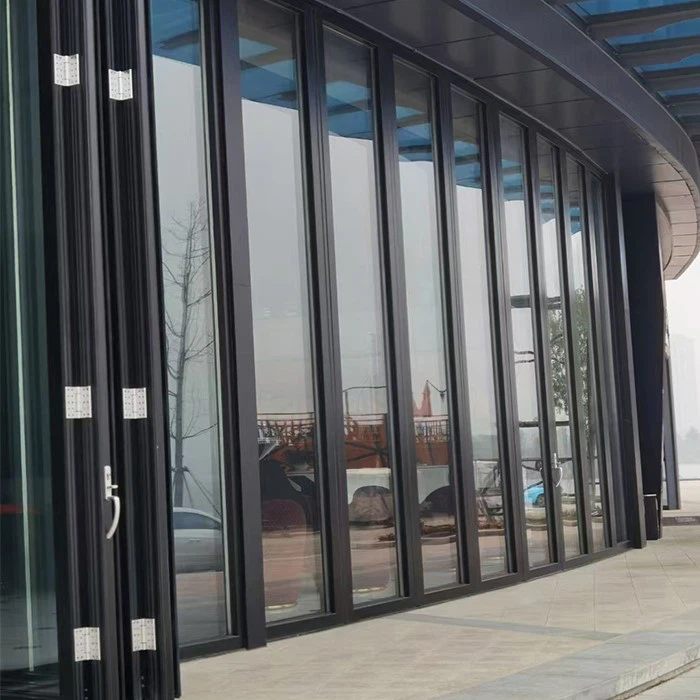

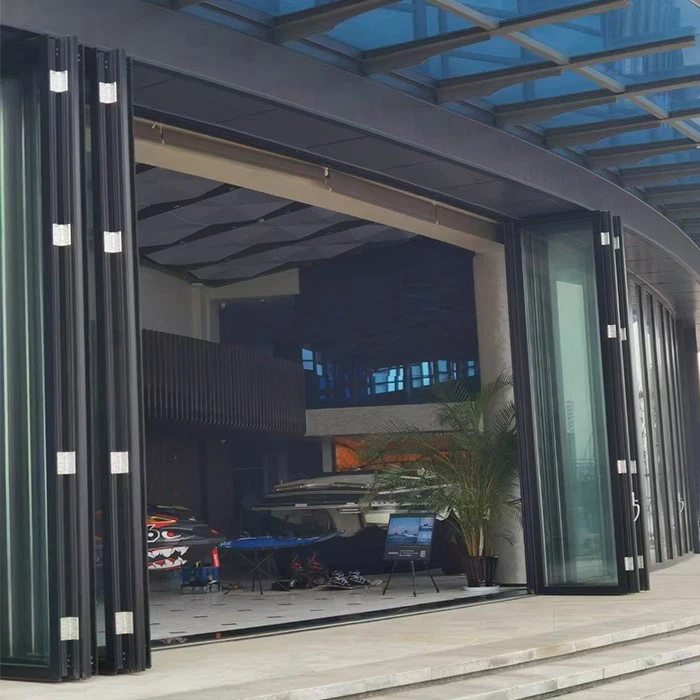

Heavy-Duty Thermal Break Bifold Doors

Extra-strong 120mm profile bifold doors featuring T6063-T5 thermal break aluminum. Certified for high-performance residential and commercial panoramic openings.

01.Peak Thermal Break : Integrated thermal barriers stop energy loss, ideal for extreme hot or cold climates.
02.Grand Opening : Robust engineering allows for massive spans, transforming entire walls into open gateways.
03.Threshold Versatility : Optional 15mm low threshold ensures seamless, trip-free indoor-outdoor access.

Series	120mm ultra-heavy thermal break system
Gauge & Material	T6063-T5 Thermal Break; 2.5mm to 3.0mm thickness
Glass Utility	Triple tempered: 5+12A+5+12A+5mm; or Double 5+20A+5mm
Sill Options	Low-profile (15mm) or high-performance (50mm)
Certifications	AS2047 (Australian), CE (European)

No operating hardware is required, reducing maintenance and improvingairtightness
Reinforced corner brackets support larger fixed glass panels.
EPDM gaskets and structural selting blocks protect glass edges.
Hidden drainage and pressure equalization help manage rainwater.
Optional reinforced mullions can be added for wide openings.
Installation brackets are coordinated with wall thickness and facade conditions.

Inquiry & Quote Share drawings or dimensions for a precise project estimate.

Technical Design CAD shop drawings created for your approval before production.

Precision Mfg. Strict quality control from profile cutting to glass assembly.

Global Delivery Secure packaging and logistics support to your job site.

20+ Years Industry Experience

OEM & ODM Custom Solutions

Global Projects 100+ Countries

One-Stop Service From Design to Delivery
