01.Aperture Command : Up to 3.5mm profile thickness allows for massive spans with safe architectural load distribution.
02.PVDF Shield : Fluorocarbon coating provides ultimate resistance against UV and chemical erosion in urban areas.

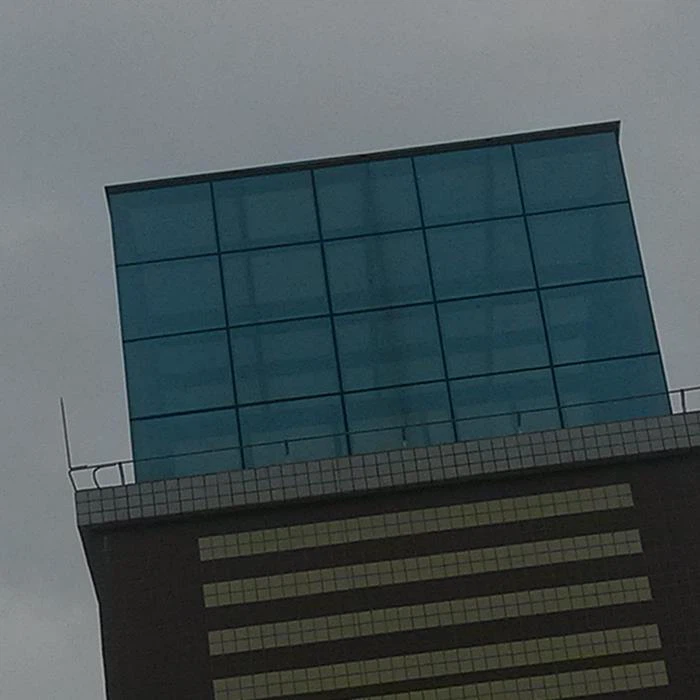

Glass Curtain Wall
Glass curtain wall, used a lot in commercial building.Modern and simplicity.
- Technical Specifications
| Profiles Meta | Thermal Break Aluminum; 6063-T5; 2.0-3.5mm thickness |
|---|---|

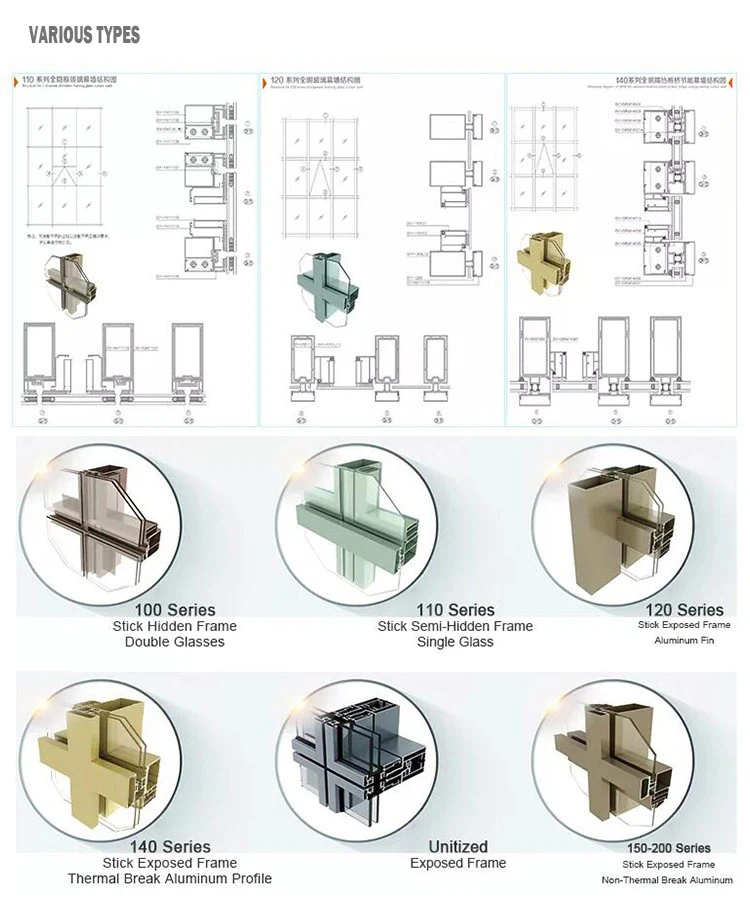

| System Series | 100/ 120/ 130/ 140/ 150 architectural series |
| Surface Finish | Anodized, Powder coated, PVDF / Fluorocarbon, Wood grain |
| Color Library | Brown, Champagne, Dark Blue, Gold, Grey, Silver, White |
| Cycle Metrics | Range: 1 – 200 M2; Est. Time: 25 days |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.

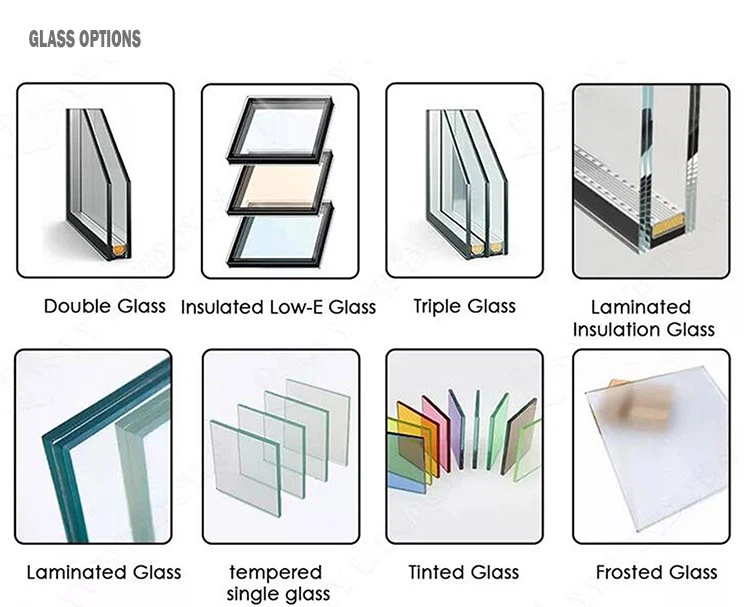

- Glass & Spacer Options
01.Aperture Command : Up to 3.5mm profile thickness allows for massive spans with safe architectural load distribution.
02.PVDF Shield : Fluorocarbon coating provides ultimate resistance against UV and chemical erosion in urban areas.
02.PVDF Shield : Fluorocarbon coating provides ultimate resistance against UV and chemical erosion in urban areas.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
