01.Fluidity : Unique curved geometry adds a dynamic, sculptural dimension to modern building envelopes.
02.Precision Fabrication : Utilizes 3.0mm heavy duty aluminum to maintain structural integrity in curved spans.
Curved Curtain Wall
curved curtain wall, is a kind of irregular shape curtain wall.
- Technical Specifications
| Shape Type | Curved / Irregular shape architectural curtain wall |
|---|---|
| Profile Brand | JMA architectural aluminium; 2.5mm or 3.0mm thickness |
| Glass Solution | Curved Tempered, Double Glazing (5+6A+5), Laminated |
| Hardware | Hoppe, Kinlong, Roto |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.

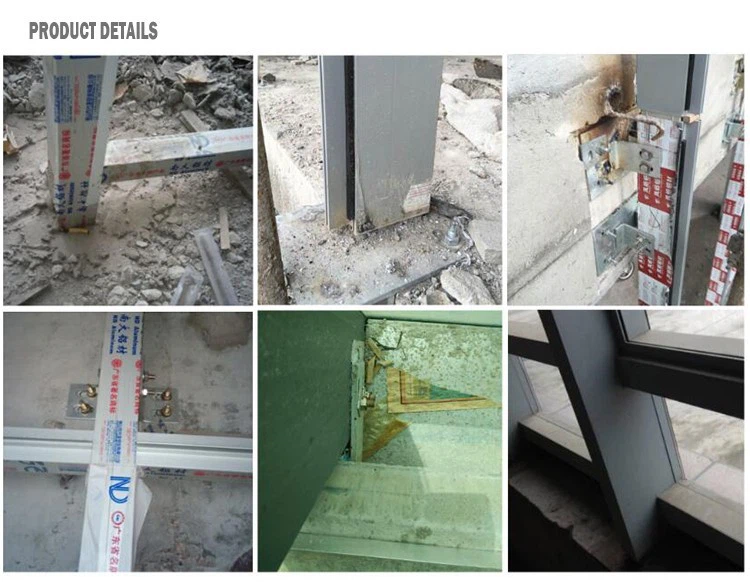

- Installation brackets are coordinated with wall thickness and facade conditions.

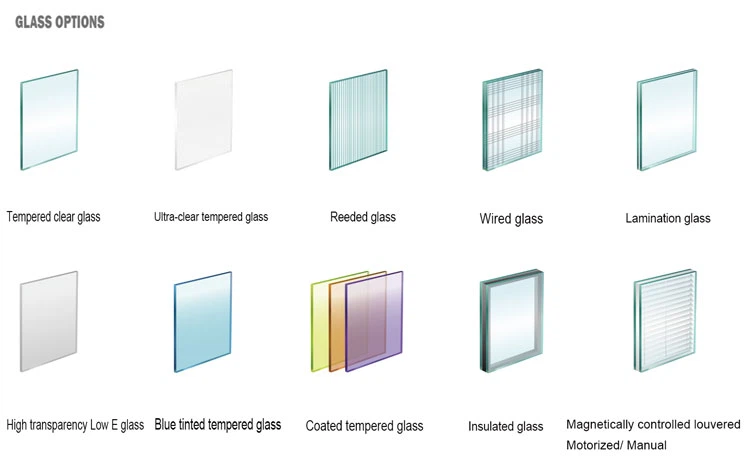

- Glass & Spacer Options
01.Fluidity : Unique curved geometry adds a dynamic, sculptural dimension to modern building envelopes.
02.Precision Fabrication : Utilizes 3.0mm heavy duty aluminum to maintain structural integrity in curved spans.
02.Precision Fabrication : Utilizes 3.0mm heavy duty aluminum to maintain structural integrity in curved spans.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
