01.Silent Slide : Precision bottom tracks and high-grade rollers ensure panels move with near-zero friction or noise.
02.Versatile Glazing : Designed to house thick security or thermal glass without compromising the sliding mechanism.
03.Custom Mesh : Supports all types of insects screens from budget nylon to high-security stainless steel units.
Aluminum Windows with Sliding Sash
Versatile 70/80/90 series sliding sash windows featuring smooth, quiet operation on bottom tracks and multiple security glass options.
- Technical Specifications
| Series & Thickness | 1.4mm profile thickness, 70/ 80/ 90 sliding series |
|---|---|
| Glazing Versatility | Double (5+12A+5), Laminated, or Tinted/Art glass, Single (5mm+) |
| Fly Screen | Fiber glass, Nylon, or High-rank security mesh, SS Net |
| Hardware Selection | Hoppe, Huixi (China), PAG, Roto, Siegenia (German); Kinlong |
| Functions | and security glass compatible, heat proof, low-emission, Sound proof |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.

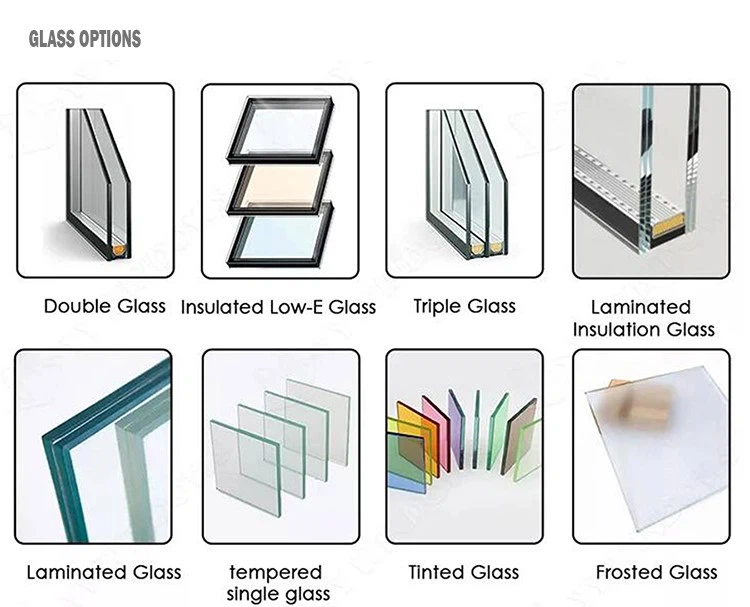

- Glass & Spacer Options
01.Silent Slide : Precision bottom tracks and high-grade rollers ensure panels move with near-zero friction or noise.
02.Versatile Glazing : Designed to house thick security or thermal glass without compromising the sliding mechanism.
03.Custom Mesh : Supports all types of insects screens from budget nylon to high-security stainless steel units.
02.Versatile Glazing : Designed to house thick security or thermal glass without compromising the sliding mechanism.
03.Custom Mesh : Supports all types of insects screens from budget nylon to high-security stainless steel units.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
