01.Argon Filled : Double glazing with optional argon gas filling for enhanced insulation.
02.Large Panels : Supports up to 950mm width and 2500mm height for maximum light.

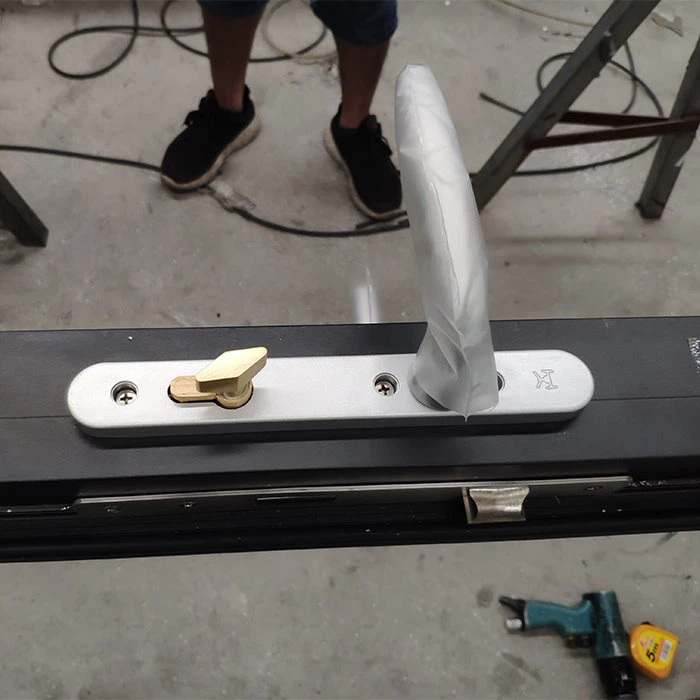

03.Multi-Point Lock : Multi-point locking system for enhanced security.
Aluminium Glazed Door
aluminium french door, 60 series, elegant brown tinted glass, high rank Weihui accessories
- Technical Specifications
| Frame size | 2.0mm thickness, 65mm profile |
|---|---|
| Glass Style | 5+12A+5mm, 6+12A+5mm, can put in Argon gas |
| Glass Option | frosted, laminated, Low E, reflective etc, tempered or not, tinted |
| Max panel width | 950mm |
| Max panel height | 2500mm |
| flyscreen | Available, fiberglass or stainless steel |
| Lock | multi-points |
- Technical Specifications
- No operating hardware is required, reducing maintenance and improvingairtightness
- Reinforced corner brackets support larger fixed glass panels.
- EPDM gaskets and structural selting blocks protect glass edges.
- Hidden drainage and pressure equalization help manage rainwater.
- Optional reinforced mullions can be added for wide openings.
- Installation brackets are coordinated with wall thickness and facade conditions.
- Glass & Spacer Options
01.Argon Filled : Double glazing with optional argon gas filling for enhanced insulation.
02.Large Panels : Supports up to 950mm width and 2500mm height for maximum light.
03.Multi-Point Lock : Multi-point locking system for enhanced security.
02.Large Panels : Supports up to 950mm width and 2500mm height for maximum light.
03.Multi-Point Lock : Multi-point locking system for enhanced security.
- Customization Workflow
01
Inquiry & Quote
Share drawings or dimensions for a precise project estimate.
02
Technical Design
CAD shop drawings created for your approval before production.
03
Precision Mfg.
Strict quality control from profile cutting to glass assembly.
04
Global Delivery
Secure packaging and logistics support to your job site.
